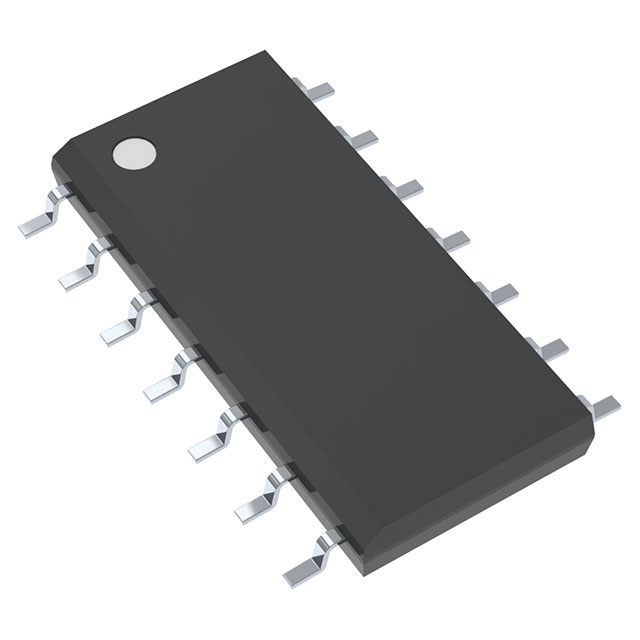

74HC86 SOIC-14 - MC74HCT86ADR2Gonsemi
|
x 1 | |
|
|
SIL Leadframe - 1544210-2TE Connectivity
|
x 28 | |
|
|
Capacitor 0.01uF 0805 - 885012207045Würth Elektronik
|
x 2 |
Tools, APP Software Used etc.
|
KiCADKicad
|
Description
Model T RAM
8K RAM module for "Model T" computers.
How to do the legs.
https://gist.github.com/bkw777/52d85d89eeff8445cc667685d05ea94d
Don't use square pins. They are too fat and they damage leaf-style sockets. Even standard machined round pins are a bit too thick technically.
Code
https://github.com/bkw777/Model_T_RAM
Schematic and Layout
https://github.com/bkw777/Model_T_RAM
