Description

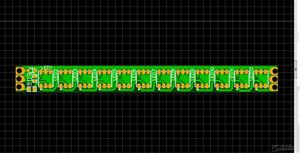

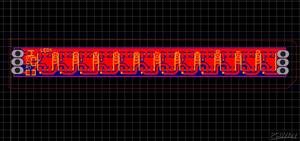

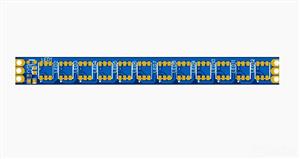

RGB (ws2812) LED Strip. Low cost, Power Efficient
RGB LED (WS2812) Strip
A low cost, Cool looking RGB LED ring.
Features:
- Circular PCB with 4x Semi Holes for mounting
- 12x RGB Ws2812 LED

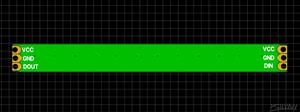

- VCC and GND Solder Pads
- Data IN and Data Out solder Pads
- Low Cost solution
- Low Power consumption
- Ideal for battery powered Devices
Dimensions:
- Diameter 50mm
- Radius 24.98mm
- Hole Cut Radius 1mm ( ideal for standard 2mm screws
Technical Specs:
- Size:50mm x50mm
- Signal Layers:2
- None Signal Layers:10
- Components:12
- Pads:78
- Surface Pads:78
- Plated Through-hole Pads:0
- None Plated Through-hole Pads:0
- Holes:0
- Vias:11
- Nets:15/15
- Length of Tracks:434.93mm
- Copper Areas:2
Open Source design:
This is an open source design with all the Gerber and CAD source files available under GNU General, Non-Commercial Public License.
