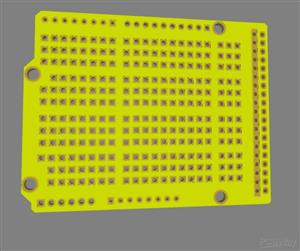

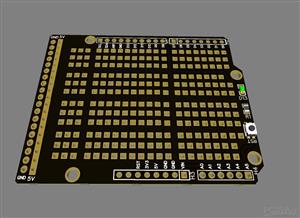

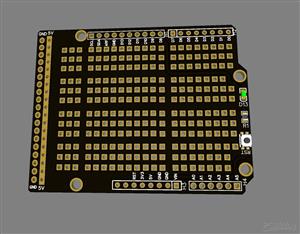

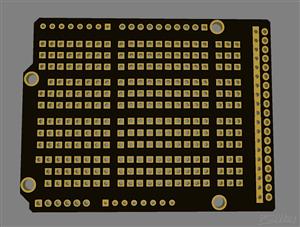

Arduino UNO Prototyping Shield

A quick prototyping shield for Arduino UNO and compatible board like Leonardo, Sparkfun Redboard etc.

Compact form factor with THT Pads for quick mount and connection of components.

Features:

Instructions:

• Use ARDUINO GPIO to Program
• See the attached schematic for Pin Mapping reference
• Apply max 5V to the VIN Pin
• Be careful while soldering components

Dimensions:

• Size:65.08mm x 55.99mm
• Signal Layers:2
• Holes:4x For M2 Screws
• Copper Areas:2

Form Factor:

• This shield design is compatible wit arduino Form factor and an be mounted abd

Open Source Design:

This Project is created under open source hardware design and can be used without permissions. See GitHub link for details

Editable Hardware Design:

You can use the available source files to modify design according to your choice. Source Files are given on the GitHub Repo.
