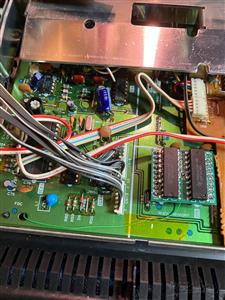

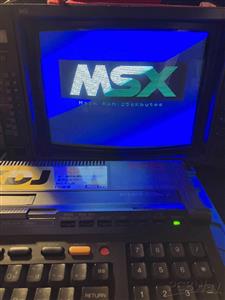

Sony MSX2+ 256K RAM expansion (HB-F1XDJ and similar models)
Compact design that fits Sony MSX2+ HB-F1XDJ.

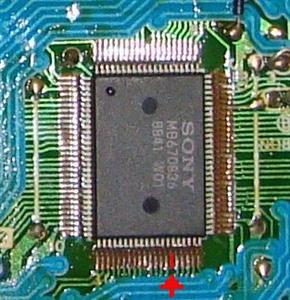

Original RAM chips should be removed and one wire connected to pin 45 of the IC MB670836 (bottom side).
http://www.basshp.msxall.com/xv.html
May 27,2021
2,667 views
end-flag
