Description
Teeprom - TANDY 100/102/200 option rom
Select ENIG finish for gold plated edge contacts.
Carrier: http://shpws.me/SGGB
Requires an SOIC-28 test clip for programming.
This is ONLY for TRS-80 Model 100, 102, or 200, because of the non-standard pinout.
For other applications that use the same socket but with a standard pinout (TANDY 600, Epson PX-8, PX-4, etc), see the "Meeprom" version from the same git repo if you want an electrically re-writable module, or just use a plain 27C256 on the standard DIP-28 version of the carrier.
Code
https://github.com/bkw777/Teeprom
Schematic and Layout
http://tandy.wiki/Teeprom
CAD-Custom parts and enclosures
cad source for carrier - you want the PCB-28 version
https://github.com/bkw777/Molex78802_Module
Molex78802_PCB_28.stl
Mar 17,2021
2,060 views
Teeprom - TANDY 100/102/200 option rom

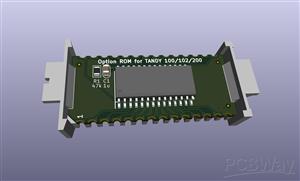

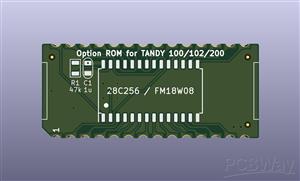

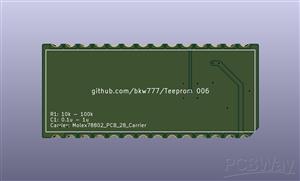

Re-writable 28C256 EEPROM for TRS-80 Model 100, 102, 200 Option Rom socket.
