AMIGA 500 - SWITCHLESS BOOT SELECTOR (3 RESET BOOT DRIVE SELECTOR)
AMIGA 500 - SWITCHLESS BOOT SELECTOR
(3 RESET BOOT DRIVE SELECTOR)
Hello,
This circuit board is tested with Amiga 500 (v1.2 - v1.3) and it is working perfectly.
"A500 - Switchless Booter" is a circuit for changing boot priority of floppy drives, for Amiga 500.
If you use a second floppy drive connected to your A500, like GOTEK Drive or a mechanical floppy drive, (as DF:1), then you need a boot selector to boot from the second drive. (Most of old boot selectors work with a toggle switch.)
While using "3 RESET BOOT DRIVE SELECTOR", if you want to toggle your floppy drives (DF:0 <> DF:1) you just need to press Reset keys 3 times, or instead of 3 times, you can press continuolusly reset keys for about 4 second. (Reset Keys are: CTRL and the two Amiga keys together) . 30 seconds after last reset, counter sets itself to zero.
Benefits of Switchless Boot Drive selector:
1) This "A500 - Switchless Booter" protects your Amiga 500. If you change the mechanical switch position while transfering data from floppy drive, this may cause damage to 8520 (Even CIA) or 5719 (GARY). Switchless booter do not let this happen.
2) Most users need to make a hole on their Amiga 500 for attaching boot selectors mechanical switch. This "A500 - Switchless Booter" toggles drives elecronicaly, there is not any mechanical switch, so you do not need to make a hole on your your Amiga.
This circuit has a PIC16F628A (programmable chip) , you need to download .HEX file, and program it in to PIC16F628A, from the bottom of this page.
Round headers will be better to fit CIA socket.
COMPONENTS:
PIC16F628A or PIC16F628 (Requires Programming)
74HC4066 (M74HC4066B1) ( Do Not Use CD4066 ! )
2PCS. 20 PIN ROUND MALE HEADER (Get a 40 pin and cut it)
DIP 40 IC SOCKET
DIP 18 IC SOKKET
DIP 14 IC SOCKET
2PCS. 100nF CAPACITOR
3 Volt or 5 Volt Active Buzzer (optional)(3V beeps louder than 5V)
You will need a pic programmer to program PIC16F628A.
12.06.2024 (Optional Firmware and Hardware Upgrade)
Audible warning (Beep) mode when changing boot drive
(Two beeps for external drive, one beep for internal drive)
You must use 3V or 5V Active Buzzer. (3V beeps louder than 5V)
Download the new .HEX file and program it into the PIC chip
Solder Positive (+) pin of Active buzzer to PIC chip pin-14,
and solder the other pin of the buzzer to PIC chip pin-17
The other version (retro version) of this project is here:
In order to protect your electronical devices, always turn off your Amiga before connecting or disconnecting the cables or any other device.
Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!
Use this PCB at your own risk !
Have fun
Thank you.
C64istanbul
AMIGA 500 - SWITCHLESS BOOT SELECTOR (3 RESET BOOT DRIVE SELECTOR)
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen(Without Speaker)
BUY NOW
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor
BUY NOW
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen(Without Speaker)
BUY NOW- Comments(70)
- Likes(34)
-
Vincent SylVin42 Feb 22,2025
-
Roman Kovář Dec 16,2024
-
Salvatore Cavallo Oct 08,2024
-
Orb Sep 02,2024
-
Mick Stone Jul 22,2024
-
Engineer Dec 26,2023
-
Engineer Sep 16,2023
-
Artur Jasowicz Jun 17,2023
-
Engineer Feb 03,2023
-
Karl Tanner Jan 24,2023
-
Peter Jaeger Dec 15,2022
-
Marcello Cruz Sep 13,2022
-
Andre Luiz Loureiro Varajao Sep 12,2022
-
RECEP UNAL Jun 27,2022
-
derux Dec 22,2021
-
Fernando Bugallo Oct 10,2021
-
Darren Bassett Aug 18,2021
-
Bjorn Tillaert May 15,2021
-
Mert Uckan Apr 15,2021
-
Meta One Mar 14,2021
-
Emre Demirkilic Mar 09,2021
-
Steve Mar 01,2021
-
Jan-Ove Lorenzen Feb 15,2021
-
Retrotinker Jan 12,2021
-
Andrew Hamilton Dec 03,2020
-
Maik Renkert ( Privat ) Sep 23,2020
-
Engineer Aug 20,2020
-
Engineer Jul 21,2020
-
Özay Turay Jun 30,2020
-
Goran Nyko Jun 20,2020
-
Eddie van Loon May 28,2020
-
DarkoPatic May 14,2020
-
Galvan May 14,2020
-
Nick Konstantinidis Apr 30,2020
- 10 USER VOTES
- YOUR VOTE 0.00 0.00
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10

-
10design
-
10usability
-
10creativity
-
10content

-
10design
-
10usability
-
10creativity
-
10content

-
6design
-
7usability
-
7creativity
-
7content

-
7design
-
8usability
-
8creativity
-
7content

-
8design
-
9usability
-
9creativity
-
8content

-
6design
-
5usability
-
5creativity
-
4content

-
5design
-
6usability
-
5creativity
-
7content

-
8design
-
8usability
-
7creativity
-
9content

-
7design
-
6usability
-
6creativity
-
5content

-
7design
-
8usability
-
9creativity
-
8content
More by (DIY) C64iSTANBUL
-
COMMODORE 64 KEYBOARD FACEPLATE FOR TACTILE BUTTON KEYBOARD PROJECTS Hello,This PCB is a Commodore 64 tactile buttons keyboard faceplate for some of my projects.It is pr...
-
SD2iEC with BROWSER CARTRIDGE (MICRO-SD) for COMMODORE 64 SD2iEC with BROWSER CARTRIDGE (MICRO-SD VERSION) for COMMODORE 64SD2iEC (Commodore 64 disk drive emu...
-
SD2iEC (COMMODORE 64 DISK DRIVE EMULATOR) POWERED from USER PORT (MICRO-SD VERSION) Hello, This is a tested and working project. (Tested on Commodore 64 and Commodore VIC-20)This is a...
-
XANTHOS ARCH Commmodore, Atari 9-pin DIY Game Controller Hello,This is a tested and working project.XANTHOS ARCH is a small, simple, DIY, 9 pin game controll...
-
AMIGA SCART CABLE CONNECTION EASY PCB Hello,This is a tested and working project.This Amiga scart cable connection PCB is an Easy DIY proj...
-
IMPOSSIBLE MISSION GAME CARTRIDGE for COMMODORE 64 IMPOSSIBLE MISSION GAME CARTRIDGE for COMMODORE 64Hello, This is a tested and working circuit board....
-
SD2iEC & EPYX FAST LOAD CARTRIDGE V2.1B (Micro SD) for COMMODORE SD2iEC & EPYX FAST LOAD CARTRIDGE V2.1B (Micro SD) for COMMODOREHello,This is a tested and worki...
-
(DIY) COMMODORE 64 DEAD-TEST (781220) DIAGNOSTIC CARTRIDGE (DIY) COMMODORE 64 DEAD-TEST (781220) DIAGNOSTIC CARTRIDGEThis is a C64 Dead-Test (781220) diagnosti...
-
COMMODORE 128 DIAGNOSTIC REV.785260 KEYBOARD DONGLE COMMODORE 128 DIAGNOSTIC REV.785260 KEYBOARD DONGLE This is a Commodore C128, C128D, C128DCR 785260 ...
-
COMMODORE 128 15KHz DISPLAY ADAPTER (C128 80 COLUMN ADAPTER) COMMODORE 128 15KHz DISPLAY ADAPTER.RGBI to RGB converter for VDC output.Hello, This is a tested an...
-
PCB HOUSE WITH LED LIGHT (DECORATION) PCB HOUSE WITH LED LIGHT (DECORATION)Hello,PCB Thickness: 1mmCOMPONENT LISTCR2032 BatteryCR2032 Batt...
-
CGTR COMMODORE AMIGA COASTER V2B CGTR COMMODORE AMIGA COASTER V2BHello,This is another version of CGTR Commodore Amiga CoasterDiamete...
-
(DIY) COMMODORE VIC-20 GAME CARTRIDGE for 8x 8KB ROMs (DIY) COMMODORE VIC-20 GAME CARTRIDGE 8x 8KBYou can make your own custom Commodore VIC-20 Multi Game...
-
AMIGA PS/2 MOUSE CONVERTER ADAPTER REV.3 (WITH JOYSTICK INPUT) Hello,This board has been tested on the Amiga 500 port-1 connected with a PS/2 mouse and standard jo...
-
(DIY) AMIGA 500 - SWITCHLESS BOOT DRIVE SELECTOR Rev.3 (RETRO VERSION of 3 RESET BOOT DRIVE SELECTOR) (DIY) AMIGA 500 - SWITCHLESS BOOT DRIVE SELECTOR Rev.3(RETRO VERSION of 3 RESET BOOT DRIVE SELECTOR)...
-
AMIGA 4 PLAYER JOYSTICK ADAPTER (DIY) AMIGA 4 PLAYER JOYSTICK ADAPTERHello,This is a tested and working project.This Amiga Four Play...
-
BARE METAL COMMODORE 64 EMULATOR GEEKS' EDITION GPIO CONFIG2 BARE METAL COMMODORE 64 EMULATOR(GPIO CONFIG2) (GEEKS' EDITION)Many thanks to Randy Rossi for BMC64 ...
-
COMMODORE 64 TACTILE BUTTON MINI KEYBOARD Hello,This is an Easy DIY project, all components are through hole, marked on the PCB, Easy to solde...
-
COMMODORE 64 KEYBOARD FACEPLATE FOR TACTILE BUTTON KEYBOARD PROJECTS Hello,This PCB is a Commodore 64 tactile buttons keyboard faceplate for some of my projects.It is pr...
-
SD2iEC with BROWSER CARTRIDGE (MICRO-SD) for COMMODORE 64 SD2iEC with BROWSER CARTRIDGE (MICRO-SD VERSION) for COMMODORE 64SD2iEC (Commodore 64 disk drive emu...
-
SD2iEC (COMMODORE 64 DISK DRIVE EMULATOR) POWERED from USER PORT (MICRO-SD VERSION) Hello, This is a tested and working project. (Tested on Commodore 64 and Commodore VIC-20)This is a...
-
XANTHOS ARCH Commmodore, Atari 9-pin DIY Game Controller Hello,This is a tested and working project.XANTHOS ARCH is a small, simple, DIY, 9 pin game controll...
-
AMIGA SCART CABLE CONNECTION EASY PCB Hello,This is a tested and working project.This Amiga scart cable connection PCB is an Easy DIY proj...
-
IMPOSSIBLE MISSION GAME CARTRIDGE for COMMODORE 64 IMPOSSIBLE MISSION GAME CARTRIDGE for COMMODORE 64Hello, This is a tested and working circuit board....
-
SD2iEC & EPYX FAST LOAD CARTRIDGE V2.1B (Micro SD) for COMMODORE SD2iEC & EPYX FAST LOAD CARTRIDGE V2.1B (Micro SD) for COMMODOREHello,This is a tested and worki...
-
(DIY) COMMODORE 64 DEAD-TEST (781220) DIAGNOSTIC CARTRIDGE (DIY) COMMODORE 64 DEAD-TEST (781220) DIAGNOSTIC CARTRIDGEThis is a C64 Dead-Test (781220) diagnosti...
-
COMMODORE 128 DIAGNOSTIC REV.785260 KEYBOARD DONGLE COMMODORE 128 DIAGNOSTIC REV.785260 KEYBOARD DONGLE This is a Commodore C128, C128D, C128DCR 785260 ...
-
COMMODORE 128 15KHz DISPLAY ADAPTER (C128 80 COLUMN ADAPTER) COMMODORE 128 15KHz DISPLAY ADAPTER.RGBI to RGB converter for VDC output.Hello, This is a tested an...
-
PCB HOUSE WITH LED LIGHT (DECORATION) PCB HOUSE WITH LED LIGHT (DECORATION)Hello,PCB Thickness: 1mmCOMPONENT LISTCR2032 BatteryCR2032 Batt...
-
CGTR COMMODORE AMIGA COASTER V2B CGTR COMMODORE AMIGA COASTER V2BHello,This is another version of CGTR Commodore Amiga CoasterDiamete...
-
-
Commodore 64 1541-II 1581 Floppy Disk Drive C64 Power Supply Unit USB-C 5V 12V DIN connector 5.25
403 1 3 -
-
-
-
-
-
-
-
Modifying a Hotplate to a Reflow Solder Station
1266 1 6 -
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor
717 0 1 -
Hi Markus Wenzel, can you please send photos of the circuit from different angles to c64istanbul@gmail.com? And, have you tried programming different .HEX files to the PIC16F628? Thank you for asking.
Email sent
I've tried hex file with and without buzzer. I have soldered 2 different ones now (4066N from different vendor), but no change.
Did you set the FUSE BITS as shown in the picture when programming the PIC16F628?
Yes, all fuse settings are the same. When I'm loading the hex file, the fuse settings are already set correctly, but I still checked them to ensure.
I have no more ideas why this won't work!
I tried another Amiga 500 (Rev 6A, original Drive, no extensions) - effect is the same. Disk/Drive sounds like if it would start to read, but returns to the Workbench "Disk" screen. Just like if you would insert en empty disk and nothing is found. Without the switch everything works fine.
Have you tried to swap two CIA chips (8520) with each other? And I replied to your email, please read it. Thank you.
1- https://www.aliexpress.com/item/1005006733563575.html

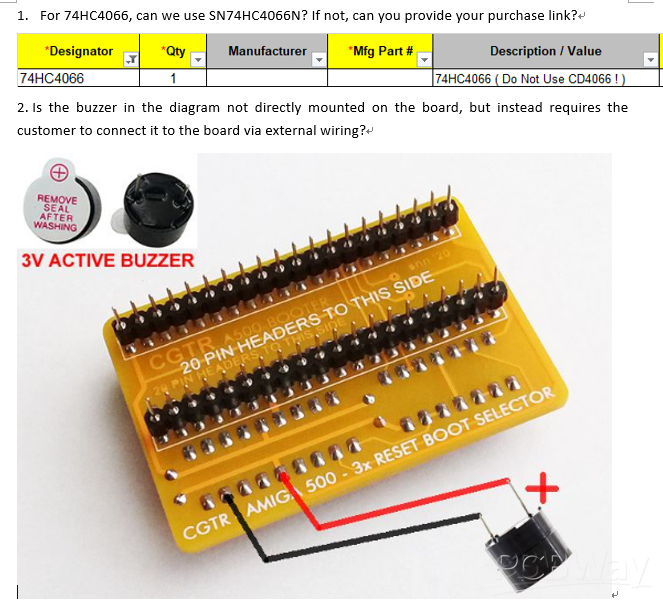

2- The buzzer should be soldered to the edge of the board, as in the photo that Federico Salis shared in the comments.
Hello, thanks for your confirmation. For the buzzer, the pin spacing of the buzzer in the Aliexpress link you provided is 5.0mm, but the pin spacing on the board is 7.62mm. If we buy the buzzer in the link you provided, can it be normally installed on the board?
https://www.aliexpress.com/item/1005005790491951.html
I corrected the link, it should be 7.6mm. Thank you
M74HC4066B1 is a DIP 16 package, but 74HC4066 on the board is a DIP 14 package, please check
http://bg-electronics.de/shop/product_info.php/products_id/10343/language/en
https://www.ebay.co.uk/itm/152256662883
https://www.heisener.com/ProductDetail/M74HC4066B1R
All DIP package M74HC4066B1 should be 14 pin. It is standart.
https://dir.heisener.com/DatasheetDownload/M74HC4066TTR.pdf
https://eu.mouser.com/datasheet/2/389/stmicroelectronics_cd00000319-1204246.pdf
https://www.ebay.com/itm/163685681620
Sorry, I see 16 pins in the picture, but that picture is just an example.
No problem. Thank you for asking.
Hi, The reason is; The electrical properties of CD4066 and 74HC4066 are different, while CD4066 does not work stably, 74HC4066 works stably. You can compare the datasheets. I haven't tried it with LS4066 because LS4066 is hard to find. Thank you for asking.
Thank you Federico Salis ;)
Hello Federico Salis, This problem can occur with some external mechanical floppy disk drives. Can you send photos of your external disk to c64istanbul@gmail.com ? Thank you.
Ps. Retro version 3-Reset Boot Selector works 99 percent in this case.
https://www.pcbway.com/project/shareproject/_DIY_AMIGA_500_SWITCHLESS_BOOT_SELECTOR_Rev_3_RETRO_VERSION_of_3_RESET_BOOT_2056c6f8.html
I wrote to you, thanks
Hello, If you are using HD disks with a 1.44MB PC floppy then you must close the HD hole of the disk with a sticker or Scotch-tape from both sides. I tried different 1.44MB floppy drives most of them worked. It should not be forgotten that; Many old disks become unusable over time because they lose their magnetic properties.
this is what happens... I have the external mechanical floppy and internal Gotek... without the pcb switch card booting from the floppy works... when I connect the card the floppies no longer start... the floppy screen remains... but the switching system works because if I reset the gotek starts...at this point I can do a further test, I saw Sven's problem on the 74HC4066, I ordered these original Philips chips...let's see if I change anything...I'll update you ..in the meantime I'll also try changing the buzzer...thanks
Resolved! I ordered the 74HC4066 chip from another seller... everything works! 😀
Thank you Federico Salis.
Hello Sven. Did you try to program the other .HEX file?
You mean "Primary External"? Yes, I did
Really strange behaviour, at my Rev5. board the internal drive is booting, despite the fact there is no "normal drive clicking" when showing Kickstart Logo (V1.2); when resetting 3 times, no external drive is booting, after resetting again 3 times, the internal drive starts booting again. So at least the "Switching" seems to work. regardless which .Hex file I was using... On my Rev.6 Board, nothing happens at all, none of the drives are booting no matter how often I reset. Important: Both Amiga500 Rev.5 & Rev.6 are working perfectly fine when 8520 is in the socket insted of the Boot Selector. Btw. Many thanks for your swift response :)
Basically what all the boot drive selector circuits do; It is to ensure that the legs 13 and 14 of the CIA2 8520 IC are interchanged. If legs 13 and 14 are swapped, the Amiga500 will boot from the external floppy disk drive. This is basically what this circuit does.
Thanks, I will check / measure the legs 13 and 14 and get back to you.
Just wanted to come back and tell the rootcause of my issues. It was the 74HC4066 purchased from Reichelt which let me down (all 12 pcs.) They have shown as good testing with the IC Tester. Using a different one from a different supplier is working like a charm 👍 So important: The circuit is 100% working! It was a component making me trouble!
Good to hear the issue has been resolved, thank you for your kind feedback.
I am glad you like it. Many thanks to Douglas Kier.
Hi Bradley Tate, I am sorry there is no way to adjust settings of the pic controller so that the selected boot setting is remembered after power off, but you can select first boot internal or external by changing Pic .HEX code (in the .zip file). Most users, who prefer to use external GOTEK drive more than internal FDD use this solution. Thank you.
Hello Peter Dimitriovskii, you should programm the "PRIMERY INTERNAL.hex" file in to PIC16F628(A). I do not know all kind of programmers software. you should choose your IC model (PIC16F628(A)), choose HEX file wile loading "PRIMERY INTERNAL.hex" , and choose the right fuse setings shown on this page. You should build the circuit with right components. CD4066 is Not good you have to use 74LS4066. This is not a very complex circuit. Please check all the solder points for short circuit. Thank you.
Thanks for the quick reply. I have used 74HC4066 as i thought this was the required part. Will this not work? I checked the logic chip and it passed the test from the programmer. Perhaps i stuffed up with the soldering so i will try again over the weekend.
I am the biggest idiot of the day. For the past few hours ive been using the wrong CIA. I should have checked it should have been the EVEN one. All works now! I even checked to see if the CIA's were broken and all is fine.
74HC4066 should work. thank you Peter.
Hello Sven Pook. You are right, but you can enable internal DF:1 useable by software, for example; if you select "DRIVES ON" from X-COPY then you can use internal DF:1. This circuit acts like all other Amiga 500 disk swappers. Thank you for asking.
There is no fuse settings required, I use TL866 programmer and program the HEX file directly. You should use 74HC4066 (Do NOT use CD4066).
Hello, thanks for response. Yes i use SN74HC4066N. well there are some fuse settings loaded into the TL866 when i load the files, should i uncheck all? what does the fuse settings say on your programmer?
Hello, I added fuse settings in the instructions. Please look at the images. Thank you.
I may miss the comments. If there is a problem then you can e-mail me. c64istanbul@bikom.com
No. I did NOT mentioned that "after 30 seconds it reverts back to DF0". I wrote "30 seconds after last reset, counter sets itself to zero." That means; If you want to toggle drives, you can not wait too much between 3 resets, Drives stay in their last position if you do not press reset 3 times in short time . Of course, drives do NOT change position (toggle), if you do not press reset 3 times, themselves automatically. Thank you for asking. You can see the answer for your second question in the zip file, There is 2 different firmware you can use in the zip file.
Ok, thanks. Looks like what i need. I will make an order later this week along with perhaps some of your other stuff. I checked my email and there is no "zip" file but rather an explanation of one. I trust that after my order i will receive the hex files? Sorry to ask heaps of questions but im doing a lot of this for the first time.
Thank you. You can download HEX files from "source code" link.
There is a rom switcher by a SukkoPera that seems to use the same keys to switch roms. Can this adaptor change the they keys you use to switch between DF0 and DF1?
I am sorry, I do not know SukkoPera's rom switcher. This is not an adaptor, This Electronic Circuit does a regular switched boot selectors job without using any mechanical switch. that is all. nothing more or less.
Rom switchers have different working principles. This circuit toggles 2 pins of 8520.
For further questions and answers please e-mail me: c64istanbul@bikom.com
