(DIY) COMMODORE 128 16KB ROM CARTRIDGE

This is a simple ROM Cartrridge for Commodore C128, C128D, C128DCR.

Cartridge's ROM capacity is; single file 16 KiloByte.

Hello,

This is a tested and working circuit. This cartridge has been tested on C128DCR

Commodore-128 ROM Cartridge is an easy DIY project, all components are through hole, marked on the PCB, easy to solder, easy to make ;)

This cartridge is designed to be plug-and-play, user-friendly, and does not require any hardware or jumper adjustments. Just insert the cartridge and turn on your Commodore 128.

This is a standard ROM Cartridge for Commodore C128, C128D, C128DCR.

ROM capacity of this Cartridge; Single File 16 KiloByte.

You can download sample ROM files from the bottom of this page.

Many thanks to Jani.

http://blog.worldofjani.com/?p=1600

Components List:

1pcs. 27c128 or 27c256 or 27c512 or w27c512 (DIP28) (needs to be programmed)

1pcs. DIP28 Wide IC Socket

1pcs. 100nf ceramic 2.54 pitch Capacitor

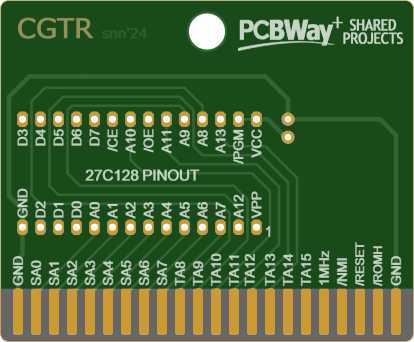

This PCB

You will need a programmer for EPROM

Please choose "Edge connector YES and Bevelling Yes (45°)

In order to protect your electronical devices, always turn off your Commodore computer before connecting or disconnecting the cables or any other device.

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.
