Description
Anemosens_Sensor_PCB - Sensor PCB for my 3D printed anemometer "Anemosens"
The Anemosens sensor PCB is the basis for the sensor structure of Anemosens, a 3D printed anemometer.

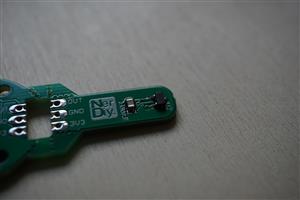

For this purpose, an AH49E analog hall sensor and an AS5048B I2C 14 bit magnetic rotary encoder are installed on the PCB.
After assembly, the PCB is divided into two parts at the prepared points and soldered together at a 90 ° angle. In this way, both the wind direction and the wind speed can be evaluated.
The sensor PCB can then be mounted on the 3D printed bracket with M2 screws.
You can also see more information in the following video.
General overview:
More info about the used PCB:
Build guide on Nerdiy.de:
https://nerdiy.de/en/howto-pcb-das-anemosens-sensor-pcb-aufbauen/
Code
First firmware implementation
https://github.com/Nerdiyde/Anemosens/tree/main/software/anemosens_mcu
Schematic and Layout
Build guide on Nerdiy.de
https://nerdiy.de/en/howto-pcb-das-anemosens-sensor-pcb-aufbauen/
