Hello,

This is a tested and working PCB. (This PCB has been tested on a C128D-CR and C64 keyboard.)

This is an Easy DIY project, all components are through hole, marked on the PCB, Easy to solder, Easy to make ;)

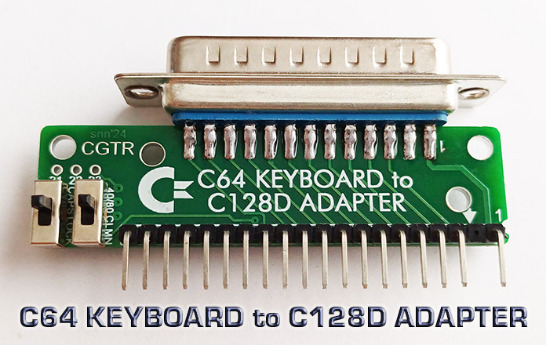

With this adapter, you can connect your Commodore 64 keyboard to your Commodore 128D or C128DCR.

Because of C64 keyboard does not have a 40/80 Column key, this key was added to the adapter. There is also an optional switch for the Caps-Lock key on the PCB.

You can also use this adapter with "COMMODORE 64 TACTILE BUTTON MINI KEYBOARD".

https://www.pcbway.com/project/shareproject/COMMODORE_64_TACTILE_BUTTON_MINI_KEYBOARD_ac888784.html

Components List:

2pcs. 3pin 2.54mm SPDT Slide Switch

20 pin 2.54mm pitch right angle male header.

D-SUB 25 Pin Male Solder Type Connector

This PCB

In order to protect your electronical devices, always turn off your Commodore computer before connecting or disconnecting the cables or any other device.

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.

C64iSTANBUL
