Description
SCART SyncSplitter
This card takes an RGB + Composite signal from a SCART connector and outputs the same RGB signal + split HSync/VSync (or CSync) on an HD15 (VGA) connector. This is not a scandoubler, and is meant to be used with multisync monitors that require either separated sync signals or a clean csync.
You can find the BOM in the linked repository.

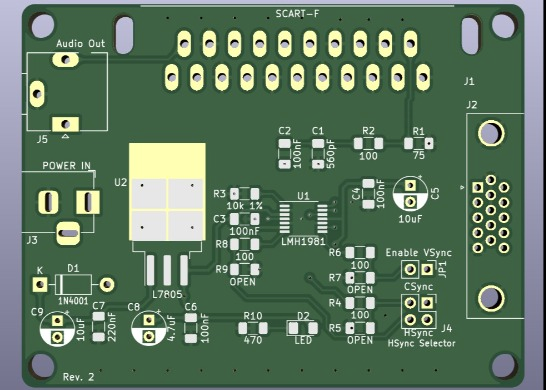

Schematic and Layout
