Robot Arm to implement CV projects

If you train it correctly, this Robot Arm will collaborate with you in the implementation of your new CV projects

1014

Published: Sep 23,2022

PCBWay Donate 10% cost To Author

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.

Smart Soldering Iron TS101-BC2

BUY NOW

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

BUY NOW

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor

BUY NOW

MHP50-B5 Mini Hot Plate Preheater

BUY NOW

Smart Soldering Iron TS101-BC2

BUY NOW

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

BUY NOW

Topic

DIY Electronics

Arduino

Robotics

Arduino DIY Robot Robotics

Comments(0)
Likes(0)

Upload photo

You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP

0 / 10000

VOTING 0 votes

VOTE NOW !

0 USER VOTES

0.00

YOUR VOTE 0.00 0.00

Design 1/4

Usability 2/4

Creativity 3/4

Content 4/4

More by Bolaños Hernando

You may also like

This is a project to modify a UYUE 946C model hotplate and convert it to a reflow soldering station.The UYUE 946C hotplate is modified by replacing the original controller and by adding an additional ...
Modifying a Hotplate to a Reflow Solder Station

193 0 2
Paul Versteeg

Paul Versteeg

NETHERLANDS, THE

9

12
IntroductionThe MPL3115A2 is a highly accurate, low-power digital barometric pressure sensor from NXP Semiconductors. It is designed to measure barometric pressure, altitude, ...
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor

145 0 1
Rabin Poudel

Rabin Poudel

NEPAL

14

0
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is an updated design of my flashable MBC1-based cartridge for the Game Boy. The MBC1 mapper was used in many of the earlier Game Boy games, such...
Game Boy MBC1 Cartridge (M29F160, SRAM)

193 0 1
Nick

Nick

UNITED STATES OF AMERICA

70

0
If you want to add springs like the original to the doors, you'll need to following spring dimensions: Length: 15mm, Outer Diameter: 2.5mm.The card details model requires clipping the excess material ...
Nintendo 64DD Replacement Shell

186 0 1
Dennis van den Broek

Dennis van den Broek

NETHERLANDS, THE

14

3
Version 2Compact design for high efficiency (>92%) USB-C Power Supply for Amiga 500, 600, 1200.Two boards (2 layers, 1.6mm thickness, 1 oz):Main (L x W) 71 x 35.5 mmDisplay (L x W) 33.3 x 35.5 mm (...
V2 Commodore AMIGA USB-C Power Sink Delivery High Efficiency Supply Triple Output 5V ±12V OLED display ATARI compatible shark 100W

408 4 1
Edoardo kinmami

Edoardo kinmami

JAPAN

265

15
This project is a digital watch that dynamically displays the current time by running a 12-hour video. The video is designed to change in real time, providing an engaging way to view the time. The wat...
Video player watch

263 1 1
Andrea Fato

Andrea Fato

ITALY

0

0
Autocut DC Mini IPS for DC 12V LoadIf you are looking for a reliable Autocut DC Mini IPS for DC 12V loads, this project will help you design an efficient power backup system. This system automatically...
Autocut DC Mini IPS for DC 12V Load

467 0 1
Estiak Khan

Estiak Khan

10

0
IntroductionThe purpose of this project is to develop a printed circuit board (PCB) that allows weight measurement using a load cell and the HX711 converter. The electronic design community will be ab...
How to measure weight with Load Cell and HX711

436 0 3
Silícios Lab silicioslab

Silícios Lab silicioslab

BRAZIL

49

0
This is a little solar DC Motor Driver.It uses two LDR (Light Dependant Resistor) sensors to track the movement of the sun.There is no microcontroller, it uses an Op-Amp (Operational Amplifier) as a c...
Tim's Solar Motor Driver

218 0 0
Tim Jackson

Tim Jackson

UNITED KINGDOM

9

11
Smart Mirror Display is an innovative project that combines technology and design to create a functional and stylish smart mirror. The setup includes a 24-inch monitor integrated with a two-way mirror...
Smart Mirror Display

783 0 1
Christian Davies

Christian Davies

UNITED KINGDOM

16

44
RadioMaster Pocket Screen MountThis project is proudly sponsored by PCBWay - Your One-Stop Solution for PCB and 3D Printing ServicesAs an FPV enthusiast, I'm excited to share my enhanced version of th...
Radiomaster Pocket 7" Monitor Mount

374 0 1
ATRO

ATRO

UNITED STATES OF AMERICA

0

1
This is an instrumentation amplifier (INA) designed to accommodate 10Mohm impedances with 16 bit precision at 1MSPS. And, this is part of the SPI Instrumentation project, providing sensor and instrume...
Instrumentation Input, high impedance with 16 bit 1MSPS ADC for SPI

538 0 0
Dr M Nelson

Dr M Nelson

UNITED STATES OF AMERICA

0

0

	servomotor	x 6
	Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test Develop DIY	x 1
	HC-05	x 1

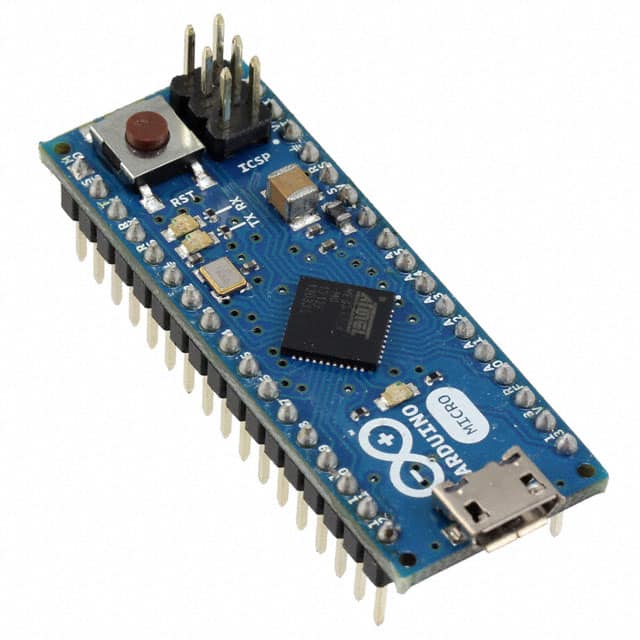

	A000053 Arduino	x 1
	19.5V 4.7A Power Supply Domallk	x 1
	S1621-46 Harwin Inc.	x 50

	arduino IDE Arduino
	MIT App Inventor MIT
	Python 3.9 Python Community
	Microsoft Visual Studio

	#include <Servo.h>
	#include <SoftwareSerial.h>
	SoftwareSerial Bluetooth(3, 4); // RX, TX

	Servo servo1; //BASE
	Servo servo2; //HOMBRO1
	Servo servo3; //HOMBRO2 no se usa en este proyecto, la idea principal era usar 2 servos para HOMBRO
	Servo servo4; //CODO1
	Servo servo5; //CODO2
	Servo servo6; //MUÑECA
	Servo servo7; //GRIPPER

	//10rapido 15medio 20lento
	int s1Vel = 15; //BASE
	int s2Vel = 25; //HOMBRO
	int s4Vel = 20; //CODO1
	int s5Vel = 20; //CODO2
	int s6Vel = 15; //MUÑECA
	int s7Vel = 15; //GRIPPER

	int index=0;

	int velG=25;


	int s1Act,s2Act,s3Act,s4Act,s5Act,s6Act,s7Act; //posicion actual de los servos
	int s1Ant,s2Ant,s3Ant,s4Ant,s5Ant,s6Ant,s7Ant; //posicion anterior de los servos
	int s1[50],s2[50],s3[50],s4[50],s5[50],s6[50],s7[50]; //matrices para almacenas las posiciones de cada servo

	String bt,btS;


	void setup(){
	Serial.begin(115200);
	Bluetooth.begin(9600);
	Bluetooth.setTimeout(10);
	servo1.attach(5,510,1200); //ancho min y max exclusivo para MG996R base
	servo2.attach(11,650,1400); //ancho min y max exclusivo para MG946R hombro1
	servo3.attach(6,650,1400); //ancho min y max exclusivo para MG946R hombro2
	servo4.attach(7,650,1400); //ancho min y max exclusivo para MG946R codo1
	servo5.attach(8,650,1400); //ancho min y max exclusivo para MG995 codo2
	servo6.attach(9,800,1290); //ancho min y max exclusivo para MG995 muneca
	servo7.attach(10,700,1290); //ancho min y max exclusivo para MG995 gripper

	s1Ant=90; //BASE
	servo1.write(s1Ant);
	//Importante empezar s2 y s3 complementados a 180°;es decir; s2+s3=180;
	s2Ant=100; //HOMBRO1
	s3Ant=80; //HOMBRO2
	servo2.write(s2Ant);
	servo3.write(s3Ant);

	s4Ant=115; //CODO1
	servo4.write(s4Ant);

	s5Ant=60; //CODO2
	servo5.write(s5Ant);

	s6Ant=90; //MUÑECA
	servo6.write(s6Ant);

	s7Ant=60; //GRIPPER
	servo7.write(s7Ant);

	delay(50);
	}

	void loop() {

	if(Bluetooth.available()>0){

	bt = Bluetooth.readString(); // leemos cadena
	//////////////////////////// SERVO 1 - BASE /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s1")){ // comprueba si la cadena comienza con "s1"
	btS = bt.substring(2,bt.length()); // extraigo los caracteres desde la poisicion 2 en adelante ejem:"s1120" a "120"
	s1Act = btS.toInt(); //convierto de string a entero
	//MUEVO EL SERVOMOTOR CON UN BARRIDO
	if(s1Ant > s1Act){
	for(int j=s1Ant; j>=s1Act; j--){
	servo1.write(j);
	delay(s1Vel);}}
	else{
	for(int j=s1Ant; j<=s1Act; j++){
	servo1.write(j);
	delay(s1Vel);}}

	s1Ant = s1Act;} //el angulo movido(s1Act) se convierte en la posicion anterior

	//////////////////////////// SERVO 2 y 3 - HOMBRO 1 y 2 /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s2")){
	btS = bt.substring(2,bt.length());
	s2Act = btS.toInt();
	Serial.println(s2Act);
	if(s2Ant > s2Act){
	for(int j=s2Ant; j>=s2Act; j--){
	servo2.write(j);
	servo3.write(180-j);
	delay(s2Vel);}}
	else{
	for(int j=s2Ant; j<=s2Act; j++){
	servo2.write(j);
	servo3.write(180-j);
	delay(s2Vel);}}

	s2Ant = s2Act;}

	//////////////////////////// SERVO 4 - CODO1 /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s3")){
	btS = bt.substring(2,bt.length());
	s4Act = btS.toInt();

	if(s4Ant > s4Act){
	for(int j=s4Ant; j>=s4Act; j--){
	servo4.write(j);
	delay(s4Vel);}}
	else{
	for(int j=s4Ant; j<=s4Act; j++){
	servo4.write(j);
	delay(s4Vel);}}

	s4Ant = s4Act;}

	//////////////////////////// SERVO 5 - CODO2 /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s4")){
	btS = bt.substring(2,bt.length());
	s5Act = btS.toInt();

	if(s5Ant > s5Act){
	for(int j=s5Ant; j>=s5Act; j--){
	servo5.write(j);
	delay(s5Vel);}}
	else{
	for(int j=s5Ant; j<=s5Act; j++){
	servo5.write(j);
	delay(s5Vel);}}

	s5Ant = s5Act;}

	//////////////////////////// SERVO 6 - MUÑECA /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s5")){
	btS = bt.substring(2,bt.length());
	s6Act = btS.toInt();
	Serial.println(s6Act);
	if(s6Ant > s6Act){
	for(int j=s6Ant; j>=s6Act; j--){
	servo6.write(j);
	delay(s6Vel);}}
	else{
	for(int j=s6Ant; j<=s6Act; j++){
	servo6.write(j);
	delay(s6Vel);}}

	s6Ant = s6Act;}

	//////////////////////////// SERVO 7 - GRIPPER /////////////////////////////////////////////////////////////////////////////////
	if(bt.startsWith("s6")){
	btS = bt.substring(2,bt.length());
	s7Act = btS.toInt();

	if(s7Ant > s7Act){
	for(int j=s7Ant; j>=s7Act; j--){
	servo7.write(j);
	delay(s7Vel);}}
	else{
	for(int j=s7Ant; j<=s7Act; j++){
	servo7.write(j);
	delay(s7Vel);}}

	s7Ant = s7Act;}

	//////////////////////////// SAVE //////////////////////////////////////////////////
	if(bt.startsWith("SAVE")){
	s1[index]= s1Ant;
	s2[index]= s2Ant;
	s4[index]= s4Ant;
	s5[index]= s5Ant;
	s6[index]= s6Ant;
	s7[index]= s7Ant;
	index++;}
	///////////////////////// RESET ///////////////////////////////////////////////////
	if(bt.startsWith("RESET")){
	//memset se utiliza para rellenar un bloque de memoria con un valor determinado
	//memeset("matriz","dato a rellenar","tamaño de la matriz")
	memset(s1,0,sizeof(s1)); //rellena con el valor de "0" todas las posiciones de la matriz
	memset(s2,0,sizeof(s2));
	memset(s4,0,sizeof(s4));
	memset(s5,0,sizeof(s5));
	memset(s6,0,sizeof(s6));
	memset(s7,0,sizeof(s7));
	index=0;}
	//////////////////////////// RUN ////////////////////////////////////////////////////
	if(bt.startsWith("RUN")){
	//Ejecuta los pasos una y otra vez hasta que se pulse el botón "RESET" o espera hasta que se vuelva a pulsar "RESET"
	while(bt.startsWith("RESET") != true){//MIENTRAS NO SE PRESIONE 'RESET' SE MANTIENE EN EL BUCLE y SOLO FUNCIONA BOTON "PAUSE"
	for(int i=0; i<= index-2;i++){
	if(Bluetooth.available()>0){
	bt = Bluetooth.readString();
	if(bt.startsWith("PAUSE") == true){
	//Ejecuta los pasos una y otra vez hasta que se pulse el botón "RUN" o espera hasta que se vuelva a pulsar "RUN"
	while(bt.startsWith("RUN") != true){//MIENTRAS NO SE PRESIONE 'RUN' SE MANTIENE EN EL BUCLE Y SOLO FUNCIONA BOTON "RESET"
	if(Bluetooth.available()>0){
	bt = Bluetooth.readString();
	if(bt.startsWith("RESET") == true){
	break;}
	}
	}
	}//end if(PAUSE)
	if(bt.startsWith("ss")){
	btS = bt.substring(2,bt.length());
	velG = btS.toInt();}
	}//end 1er Bluetooth.available
	//////// SERVO 1 ////////////////////////
	if(s1[i] == s1[i+1]){}

	if(s1[i] > s1[i+1]){
	for(int j = s1[i]; j >= s1[i+1];j--){
	servo1.write(j);
	delay(velG);}}

	if(s1[i] < s1[i+1]){
	for(int j = s1[i]; j <= s1[i+1];j++){
	servo1.write(j);
	delay(velG);}}
	//////// SERVO 2 y 3 /////////////////////
	if(s2[i] == s2[i+1]){}

	if(s2[i] > s2[i+1]){
	for(int j = s2[i]; j >= s2[i+1];j--){
	servo2.write(j);
	servo3.write(180-j);
	delay(velG);}}

	if(s2[i] < s2[i+1]){
	for(int j = s2[i]; j <= s2[i+1];j++){
	servo2.write(j);
	servo3.write(180-j);
	delay(velG);}}
	//////// SERVO 4 ////////////////////////
	if(s4[i] == s4[i+1]){}

	if(s4[i] > s4[i+1]){
	for(int j = s4[i]; j >= s4[i+1];j--){
	servo4.write(j);
	delay(velG);}}

	if(s4[i] < s4[i+1]){
	for(int j = s4[i]; j <= s4[i+1];j++){
	servo4.write(j);
	delay(velG);}}
	//////// SERVO 5 ////////////////////////
	if(s5[i] == s5[i+1]){}

	if(s5[i] > s5[i+1]){
	for(int j = s5[i]; j >= s5[i+1];j--){
	servo5.write(j);
	delay(velG);}}

	if(s5[i] < s5[i+1]){
	for(int j = s5[i]; j <= s5[i+1];j++){
	servo5.write(j);
	delay(velG);}}
	//////// SERVO 6 ////////////////////////
	if(s6[i] == s6[i+1]){}

	if(s6[i] > s6[i+1]){
	for(int j = s6[i]; j >= s6[i+1];j--){
	servo6.write(j);
	delay(velG);}}

	if(s6[i] < s6[i+1]){
	for(int j = s6[i]; j <= s6[i+1];j++){
	servo6.write(j);
	delay(velG);}}
	//////// SERVO 7 ////////////////////////
	if(s7[i] == s7[i+1]){}

	if(s7[i] > s7[i+1]){
	for(int j = s7[i]; j >= s7[i+1];j--){
	servo7.write(j);
	delay(velG);}}

	if(s7[i] < s7[i+1]){
	for(int j = s7[i]; j <= s7[i+1];j++){
	servo7.write(j);
	delay(velG);}}
	}// end FOR INDEX
	}//end 1er WHILE "RESET"
	}

	}//if(Bluetooth.available()>0){
	}//end void loop

servomotor

Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test Develop DIY

HC-05

A000053

19.5V 4.7A Power Supply

S1621-46

arduino IDE

MIT App Inventor

Python 3.9

Microsoft Visual Studio

Robot Arm to implement CV projects

Robot Arm to implement CV projects

Smart Soldering Iron TS101-BC2

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor

MHP50-B5 Mini Hot Plate Preheater

Smart Soldering Iron TS101-BC2

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

More by Bolaños Hernando

Modifying a Hotplate to a Reflow Solder Station

MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor

Game Boy MBC1 Cartridge (M29F160, SRAM)

Nintendo 64DD Replacement Shell

V2 Commodore AMIGA USB-C Power Sink Delivery High Efficiency Supply Triple Output 5V ±12V OLED display ATARI compatible shark 100W

Video player watch

Autocut DC Mini IPS for DC 12V Load

How to measure weight with Load Cell and HX711

Tim's Solar Motor Driver

Smart Mirror Display

Radiomaster Pocket 7" Monitor Mount

Instrumentation Input, high impedance with 16 bit 1MSPS ADC for SPI

The PCBWay that recognize the talent and effort of the best ELECTRONIC designers in the World.
